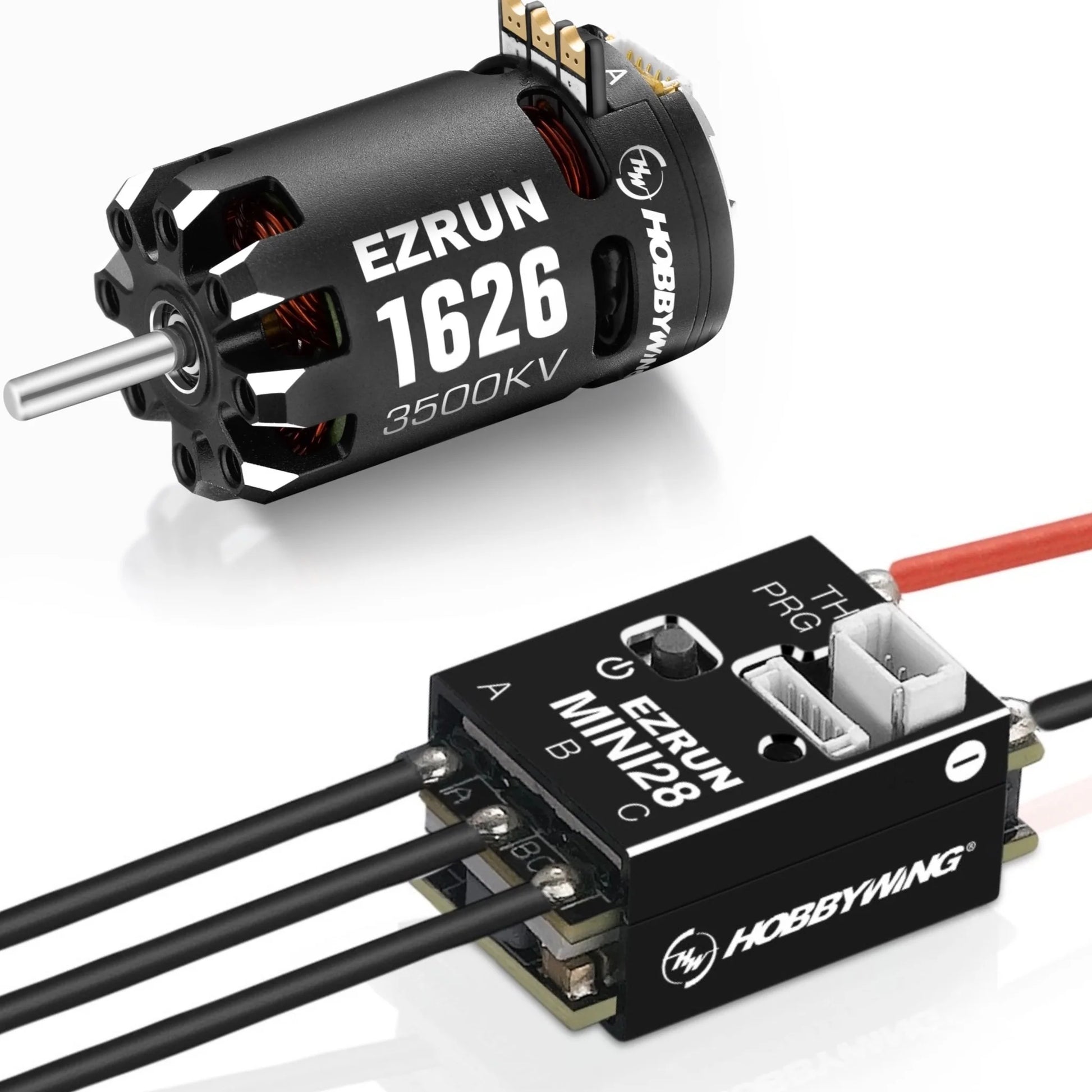

Designed for high-power 1/28th scale builders

What's in the box?

• (1) EZRUN Mini 28 ESC
• (1) EZRUN 1626 Sensored Motor
• (1) Supportive accessories (double side tape, etc)

  Features

  • Improved top speed / Precision response / High efficiency with the cool operation
  • When used with the EzRun Mini28 ESC, timing advance can be used to increase top speeds drastically.
  • Zero cogging, consistent torque, and excellent low-speed response give an amazing feel and driveability
  • Modular detachable structure, convenient for daily cleaning and maintenance.


     Programming devices (purchase separately):

  • OTA Programmer

  • Tunalyzer
  • LCD Program Box

  • EZRUN Mini28 System for 1/28-1/27th scale car










    Specifications


    Product Title	EZRUN Mini28 ESC
    Part number	30101300
    Technology	Brushless Sensored
    Waterproof	No
    Cont./Peak Current	30A/80A
    Input Voltage	2S Lipo
    BEC Output	6V/7.4V @Max 3.5A
    Wires & Connectors	Input Wires: 20AWG-55mm * Output Wires: 22AWG-80mm *
    Size & Weight	22.7x14.2x11.8mm | 5g (without wires)
    Applications	Motor: 1626 Size Motors Vehicle: 1/28th&1/27th
    ESC Programming	LCD G2 Program Box OTA Programmer Throttle Wire
    Firmware Upgrade	Supported
    Manual download	> User Manaual Ezrun Mini28th (PDF)
    Product Brochure	> Ezrun Mini28 Leaflet-en

    *All the wire length above is the original length not the length you see from the outside.




    EZRUN 1626 Motor

    Model	Ezrun 1626-3500KV	Ezrun 1626-5000KV	Ezrun 1626-6500KV
    PN	30402653	30402654	30402655
    Pole	2	2	2
    KV	3500KV	5000KV	6500KV
    No-load Current(A)	0.4A	0.5A	0.6A
    Input Voltage	2S	2S	2S
    Diameter/ Length(mm)	16	16	16
    Shaft Diameter/ Length (mm)	26	26	26
    Applications	1/28th Mini	1/28th Mini	1/28th Mini
    Weight	18g	18g	18g
